Sandvik Coromant

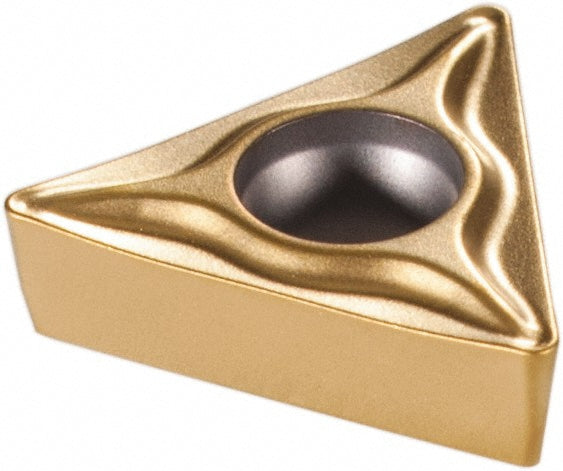

TCMT 09 02 04-UM 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5751766
MFR# 5751766ISO/ANSI# TCMT 09 02 04-UM 1525
$11.40List $14.36
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5751766 is a TCMT 09 02 04-UM 1525 carbide indexable insert, grade 1525, TiCN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Corner radius in1/64
Hole diameter0.0984
Included angle60
Inscribed circle0.2250
Insert holding methodScrew
Insert length0.3532
Insert materialCarbide
Insert shapeTriangle
Insert size code1.81.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 09 02 04-UM 1525
Length range0.3000 - 0.4000
Manufacturer grade1525
Relief angle7
Tolerance codeM
