Sandvik Coromant

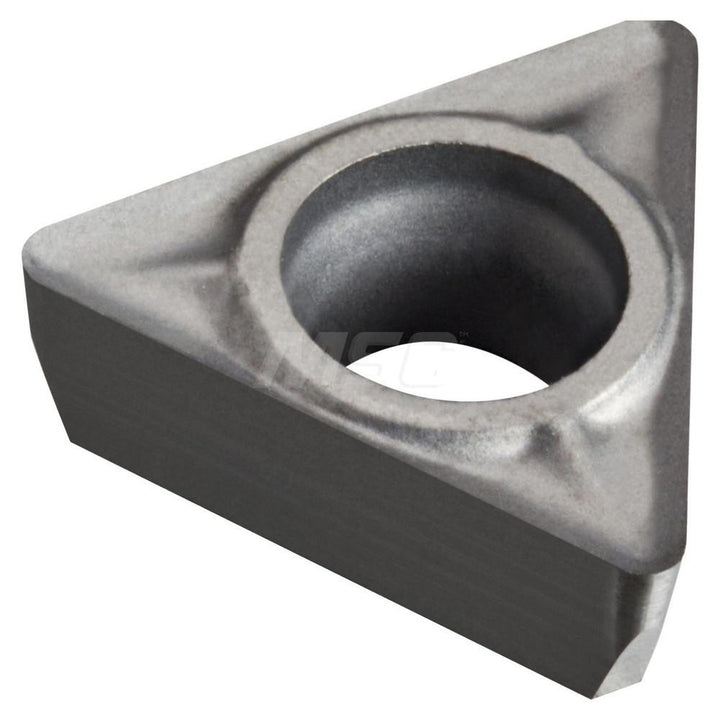

TCGX 11 02 04-AL H10 Carbide Insert, Grade H10 - Sandvik Coromant 5751776
MFR# 5751776ISO/ANSI# TCGX 11 02 04-AL H10Series CoroTurn 107
$21.27List $27.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeH10
MaterialCarbide
Description
The Sandvik Coromant 5751776 is a TCGX 11 02 04-AL H10 carbide indexable insert, grade H10. Suited for non-ferrous metal.
Specifications
Chip breakerAL
Clearance codeC
Corner radius in1/64
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4071
Insert materialCarbide
Insert shapeTriangle
Insert size code21.51
Insert styleTCGX
Insert thickness in3/32
Iso codeTCGX 11 02 04-AL H10
Length range0.4000 - 0.5000
Manufacturer gradeH10
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
