Sandvik Coromant
TCGW110308S01020F 7015 Carbide Insert, Grade 7015, TiN - Sandvik Coromant 5751822
MFR# 5751822ISO/ANSI# TCGW110308S01020F 7015
$105.41List $132.84
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade7015
MaterialCarbide
CoatingTiN
Description

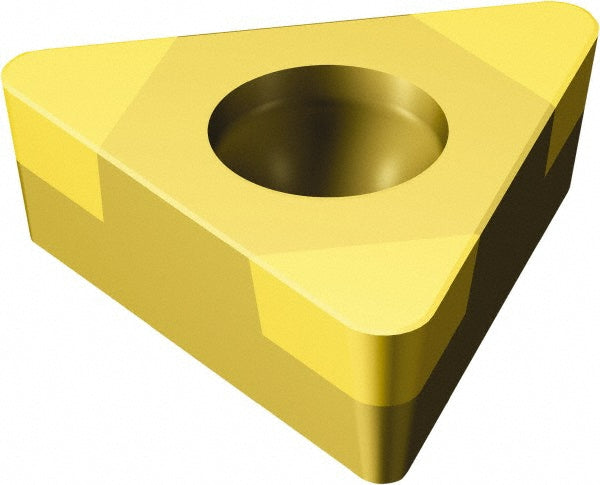

The Sandvik Coromant 5751822 is a TCGW110308S01020F 7015 carbide indexable insert, grade 7015, TiN coated.
Specifications
Chip breakerW
Clearance codeC
Coating finishTiN
Corner radius in1/32
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.0787
Insert materialCarbide
Insert shapeTriangle
Insert size code222
Insert styleTCGW
Insert thickness in1/8
Iso codeTCGW110308S01020F 7015
Length range0.0000 - 0.3000
Manufacturer grade7015
Relief angle7
Tolerance codeG
