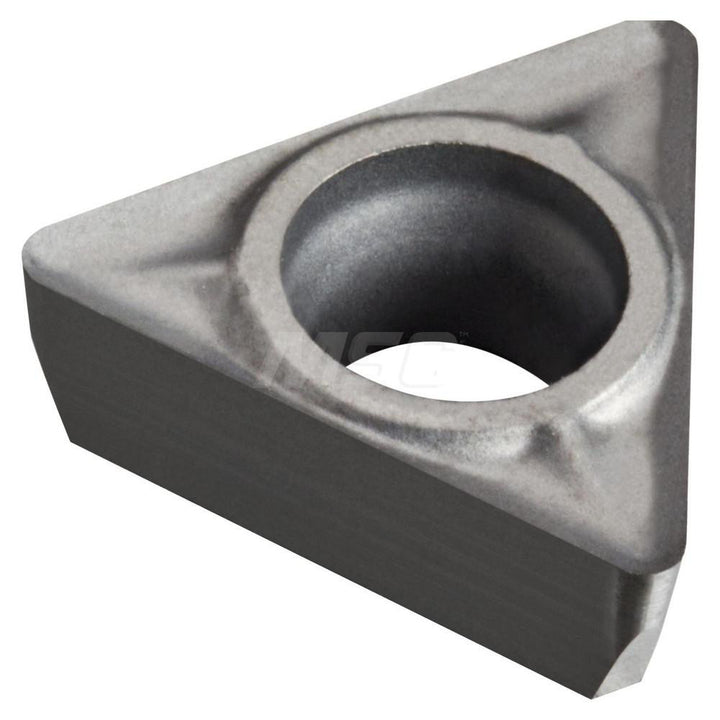

TCGX 09 02 04-AL H10 Carbide Insert, Grade H10 - Sandvik Coromant 5751840
MFR# 5751840ISO/ANSI# TCGX 09 02 04-AL H10Series CoroTurn 107
$16.96List $21.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeH10
MaterialCarbide
Description
The Sandvik Coromant 5751840 is a TCGX 09 02 04-AL H10 carbide indexable insert, grade H10. Suited for non-ferrous metal.
Specifications
Chip breakerAL
Clearance codeC
Corner radius in1/64
Hole diameter0.0984
Included angle60
Inscribed circle0.2188
Insert handNeutral
Insert holding methodScrew
Insert length0.3532
Insert materialCarbide
Insert shapeTriangle
Insert size code1.81.51
Insert styleTCGX
Insert thickness in3/32
Iso codeTCGX 09 02 04-AL H10
Length range0.3000 - 0.4000
Manufacturer gradeH10
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
