Sandvik Coromant

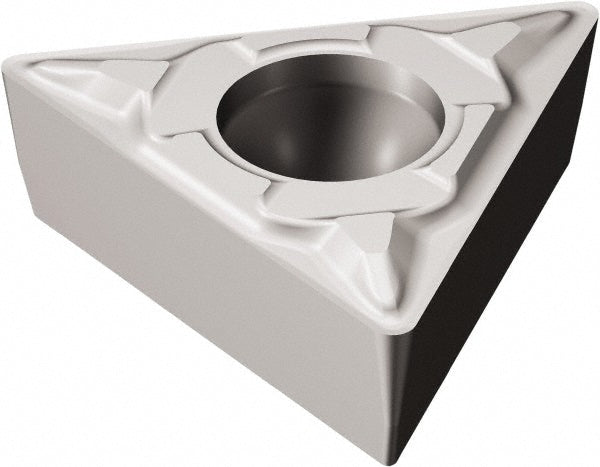

TCMT 09 02 04-PF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5751871
MFR# 5751871ISO/ANSI# TCMT 09 02 04-PF 5015Series CoroTurn 107
$12.46List $15.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
Grade5015
MaterialCarbide
Description
The Sandvik Coromant 5751871 is a TCMT 09 02 04-PF 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerPF
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.0984
Included angle60
Inscribed circle0.2250
Insert handNeutral
Insert holding methodScrew
Insert length0.3532
Insert materialCarbide
Insert shapeTriangle
Insert size code1.81.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 09 02 04-PF 5015
Length range0.3000 - 0.4000
Manufacturer grade5015
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
