Sandvik Coromant

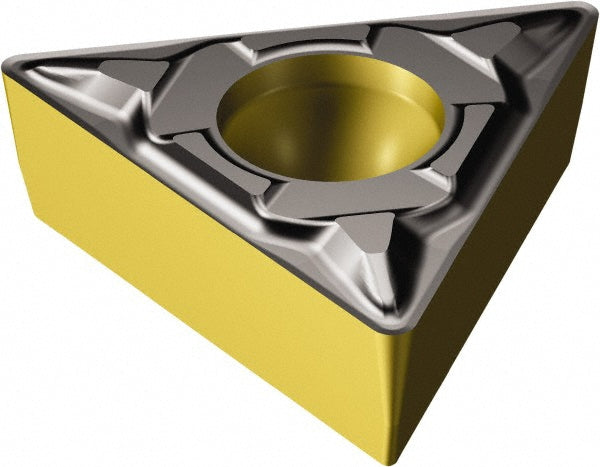

TCMT 09 02 04-PF 1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5751909
MFR# 5751909ISO/ANSI# TCMT 09 02 04-PF 1515Series CoroTurn 107
$12.67List $16.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5751909 is a TCMT 09 02 04-PF 1515 carbide indexable insert, grade 1515, TiCN coated. Suited for steel.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.0984
Included angle60
Inscribed circle0.2250
Insert handNeutral
Insert holding methodScrew
Insert length0.3532
Insert materialCarbide
Insert shapeTriangle
Insert size code1.81.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 09 02 04-PF 1515
Length range0.3000 - 0.4000
Manufacturer grade1515
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
