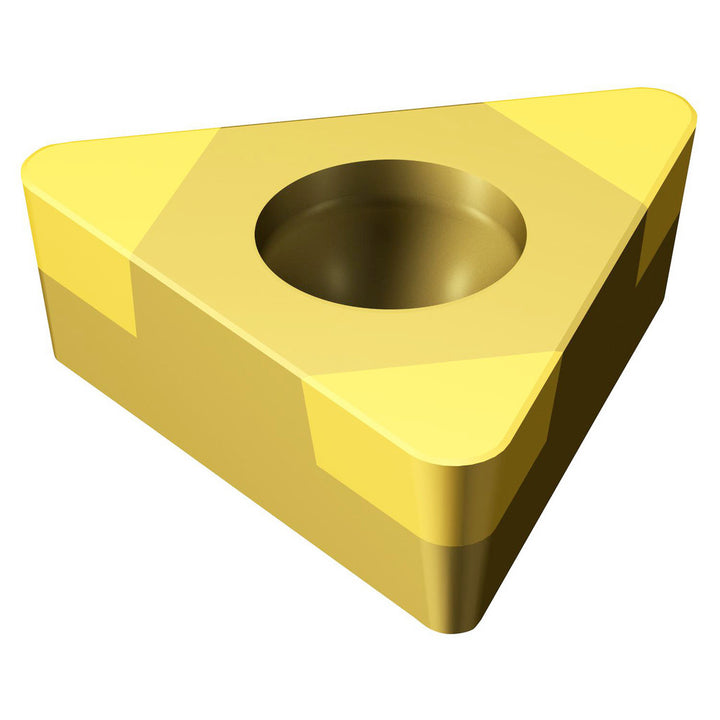

TCGW110204S01020F 7015 Carbide Insert, Grade 7015, TiN - Sandvik Coromant 5752106

Sandvik Coromant

TCGW110204S01020F 7015 Carbide Insert, Grade 7015, TiN - Sandvik Coromant 5752106

MFR# 5752106ISO/ANSI# TCGW110204S01020F 7015Series CoroTurn 107

$127.68List $160.92 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeTriangle
Grade7015
MaterialCarbide
CoatingTiN

Description

The Sandvik Coromant 5752106 is a TCGW110204S01020F 7015 carbide indexable insert, grade 7015, TiN coated. Suited for hard material.

Specifications

Chip breakerW
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.0709
Insert materialCarbide
Insert shapeTriangle
Insert size code21.51
Insert styleTCGW
Insert thickness in3/32
Iso codeTCGW110204S01020F 7015
Length range0.0000 - 0.3000
Manufacturer grade7015
Number of cutting edges3
Primary workpiece materialHard Material
Relief angle7
Tolerance codeG
Wiper edgeNo
