Sandvik Coromant

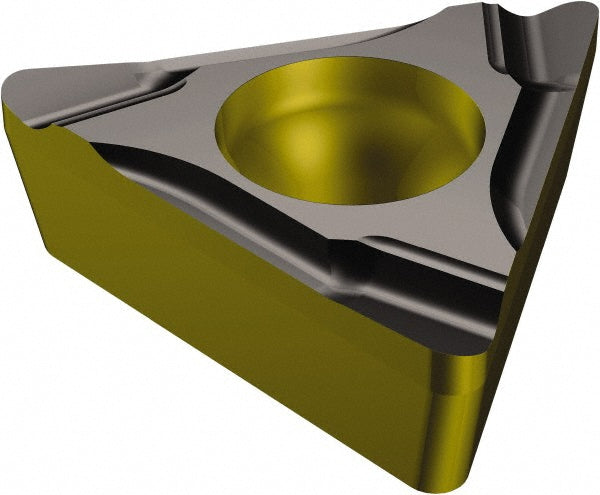

TCGT110302LK1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5752135
MFR# 5752135ISO/ANSI# TCGT110301Series CoroTurn 107
$24.33List $30.67
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5752135 is a TCGT110302LK1515 carbide indexable insert, grade 1515, TiCN coated.
Specifications
Ansi insert codeTCGT220
Ansi size code220
Chip breakerK
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius0.0079
Grade characteristicsSteel (P) - High Wear-Resistance
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handLeft Hand
Insert holding methodScrew
Insert length0.4228
Insert materialCarbide
Insert shapeT - Triangle
Insert size code220
Insert styleTCGT
Insert thickness in1/8
Iso codeTCGT110302LK1515
Iso insert codeTCGT110301
Iso size code110301
Length range0.4000 - 0.5000
Manufacturers catalog number5752135
Manufacturer grade1515
Maximum depth of cut0.4150
Relief angle7
Side clearancePositive
Tolerance codeG
