Sandvik Coromant

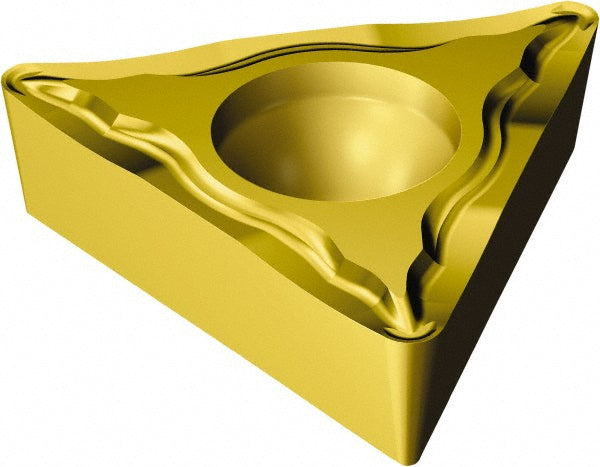

TCMT 11 02 04-UM 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5752148
MFR# 5752148ISO/ANSI# TCMT 11 02 04-UM 1525Series CoroTurn 107
$14.90List $19.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5752148 is a TCMT 11 02 04-UM 1525 carbide indexable insert, grade 1525, TiCN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4071
Insert materialCarbide
Insert shapeTriangle
Insert size code21.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 11 02 04-UM 1525
Length range0.4000 - 0.5000
Manufacturer grade1525
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
Tolerance codeM
Wiper edgeNo
