TCGT 11 02 08-UM 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5752153
MFR# 5752153ISO/ANSI# TCGT 11 02 08-UM 5015
$24.14List $30.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade5015
MaterialCarbide
Description

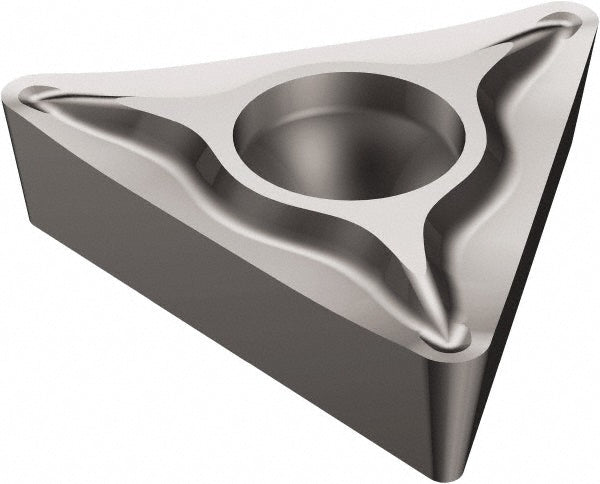

The Sandvik Coromant 5752153 is a TCGT 11 02 08-UM 5015 carbide indexable insert, grade 5015.
Specifications
Chip breakerT
Clearance codeC
Corner radius in1/32
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.3913
Insert materialCarbide
Insert shapeTriangle
Insert size code21.52
Insert styleTCGT
Insert thickness in3/32
Iso codeTCGT 11 02 08-UM 5015
Length range0.3000 - 0.4000
Manufacturer grade5015
Relief angle7
Tolerance codeG
