Sandvik Coromant

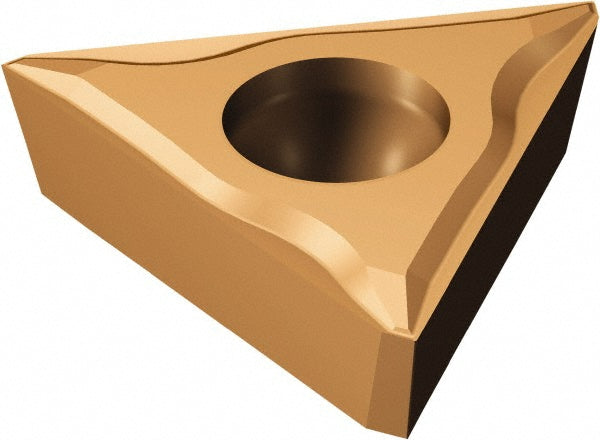

TCEX 06 T1 01L-F 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5752183
MFR# 5752183ISO/ANSI# TCEX 06 T1 01L-F 1125Series CoroTurn 107
$30.98List $39.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTriangle
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5752183 is a TCEX 06 T1 01L-F 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
ChipbreakerF
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Hole diameter0.0866
Included angle60
Inscribed circle in5/32
Insert handLeft Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code1.21.203
Insert styleTCEX
Iso codeTCEX 06 T1 01L-F 1125
Length0.2567
Manufacturer grade1125
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloy; Titanium
