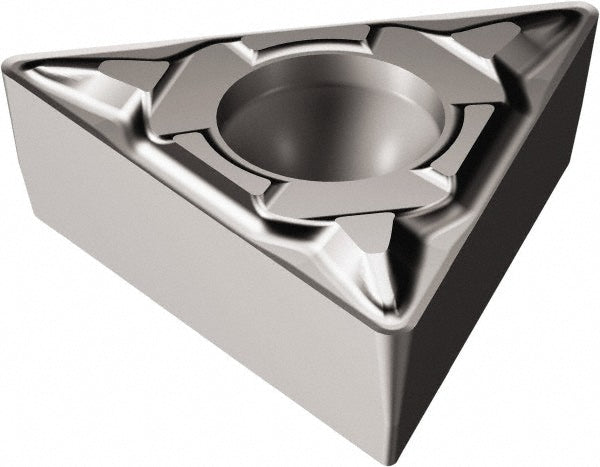

TCMT 09 02 04-MF 1105 Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 5752184
MFR# 5752184ISO/ANSI# TCMT 09 02 04-MF 1105Series CoroTurn 107
$13.68List $17.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeTriangle
Grade1105
MaterialCarbide
CoatingTiAlN2
Description
The Sandvik Coromant 5752184 is a TCMT 09 02 04-MF 1105 carbide indexable insert, grade 1105, TiAlN2 coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeC
Coating finishTiAlN2
Coating processPVD
Corner radius in1/64
Hole diameter0.0984
Included angle60
Inscribed circle in7/32
Insert handNeutral
Insert holding methodScrew
Insert length0.3689
Insert materialCarbide
Insert shapeTriangle
Insert size code1.81.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 09 02 04-MF 1105
Length range0.3000 - 0.4000
Manufacturers catalog number5752184
Manufacturer grade1105
Maximum depth of cut0.3532
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
