Sandvik Coromant

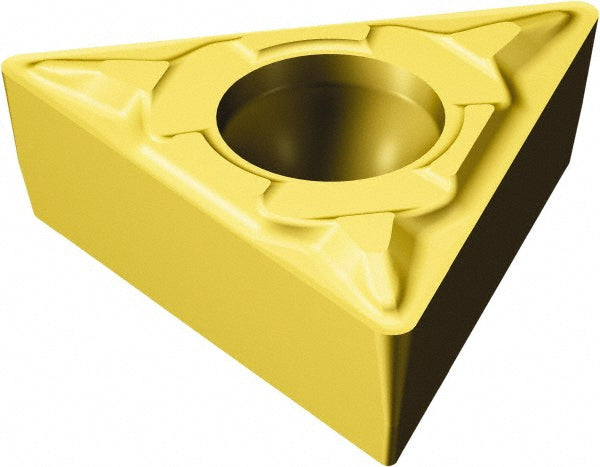

TCMT 09 02 04-MF 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5752193
MFR# 5752193ISO/ANSI# TCMT 09 02 04-MF 2015Series CoroTurn 107
$17.01List $21.44
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5752193 is a TCMT 09 02 04-MF 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.0984
Included angle60
Inscribed circle0.2250
Insert handNeutral
Insert holding methodScrew
Insert length0.3532
Insert materialCarbide
Insert shapeTriangle
Insert size code1.81.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 09 02 04-MF 2015
Length range0.3000 - 0.4000
Manufacturer grade2015
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
