TCMT 09 02 02-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5752200
MFR# 5752200ISO/ANSI# TCMT 09 02 02-MF 1125Series CoroTurn 107
$15.20List $19.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeTriangle
Grade1125
MaterialCarbide
CoatingTiAlN
Description

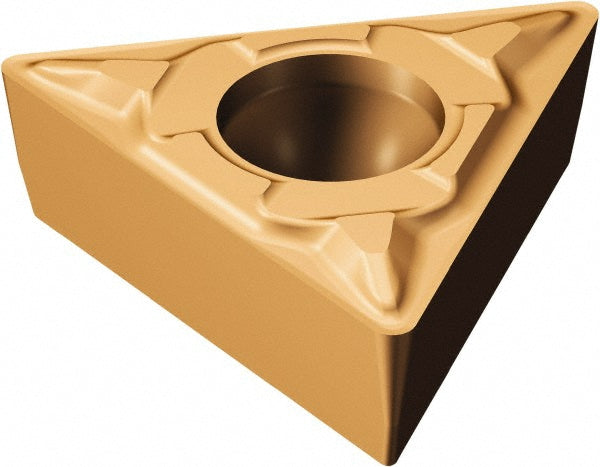

The Sandvik Coromant 5752200 is a TCMT 09 02 02-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.0984
Included angle60
Inscribed circle in7/32
Insert handNeutral
Insert holding methodScrew
Insert length0.3689
Insert materialCarbide
Insert shapeTriangle
Insert size code1.81.50
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 09 02 02-MF 1125
Length range0.3000 - 0.4000
Manufacturers catalog number5752200
Manufacturer grade1125
Maximum depth of cut0.3610
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
