Sandvik Coromant
TCMT 09 02 02-PF 5015 Carbide Insert, Grade 5015 - Sandvik Coromant 5752218
MFR# 5752218ISO/ANSI# TCMT 09 02 02-PF 5015Series CoroTurn 107
$13.72List $17.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
Grade5015
MaterialCarbide
Description

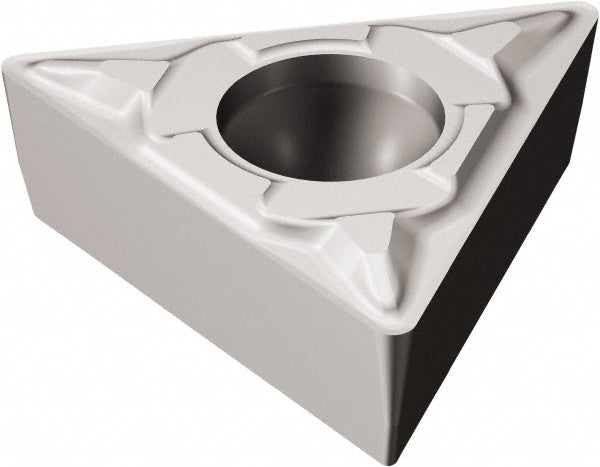

The Sandvik Coromant 5752218 is a TCMT 09 02 02-PF 5015 carbide indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerPF
Clearance codeC
Coating processUncoated
Corner radius0.0079
Hole diameter0.0984
Included angle60
Inscribed circle0.2250
Insert handNeutral
Insert holding methodScrew
Insert length0.3610
Insert materialCarbide
Insert shapeTriangle
Insert size code1.81.50
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 09 02 02-PF 5015
Length range0.3000 - 0.4000
Manufacturer grade5015
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
