Sandvik Coromant

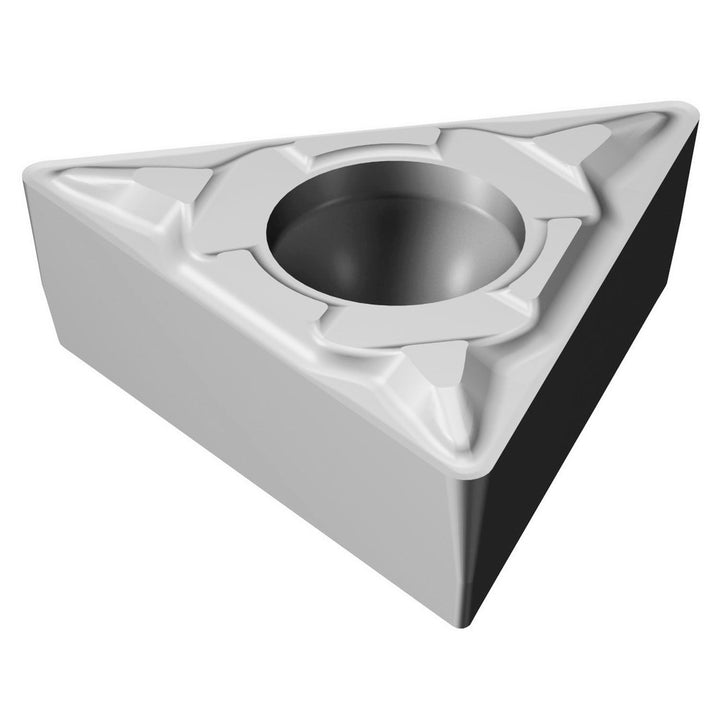

TCMT 09 02 04-KF H13A Carbide Insert, Grade H13A - Sandvik Coromant 5752222
MFR# 5752222ISO/ANSI# TCMT 09 02 04-KF H13ASeries CoroTurn 107
$9.93List $12.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5752222 is a TCMT 09 02 04-KF H13A carbide indexable insert, grade H13A. Suited for cast iron.
Specifications
Chip breakerKF
Clearance codeC
Corner radius in1/64
Hole diameter0.0984
Included angle60
Inscribed circle0.2188
Insert handNeutral
Insert holding methodScrew
Insert length0.3532
Insert materialCarbide
Insert shapeTriangle
Insert size code1.81.51
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 09 02 04-KF H13A
Length range0.3000 - 0.4000
Manufacturer gradeH13A
Number of cutting edges3
Primary workpiece materialCast Iron
Relief angle7
Secondary workpiece materialNon-Ferrous Metal
Tolerance codeM
Wiper edgeNo
