Sandvik Coromant

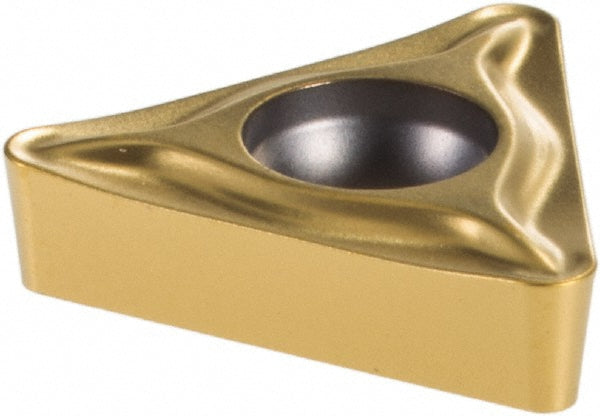

TCMT 11 02 08-UM 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5752408
MFR# 5752408ISO/ANSI# TCMT 11 02 08-UM 1525
$13.39List $17.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5752408 is a TCMT 11 02 08-UM 1525 carbide indexable insert, grade 1525, TiCN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Corner radius in1/32
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.3913
Insert materialCarbide
Insert shapeTriangle
Insert size code21.52
Insert styleTCMT
Insert thickness in3/32
Iso codeTCMT 11 02 08-UM 1525
Length range0.3000 - 0.4000
Manufacturer grade1525
Relief angle7
Tolerance codeM
