Sandvik Coromant

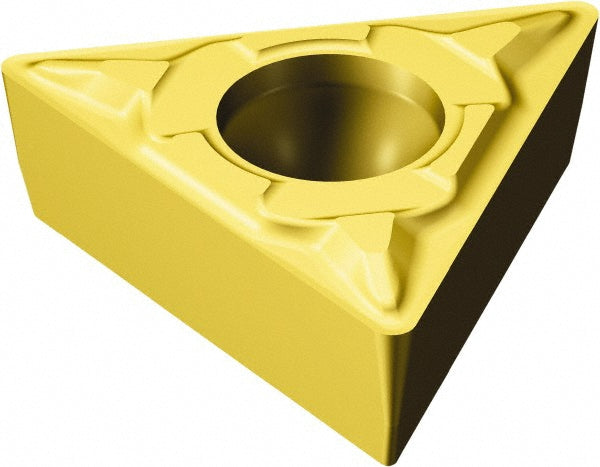

TCMT 11 03 04-MF 2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5752506
MFR# 5752506ISO/ANSI# TCMT 11 03 04-MF 2015Series CoroTurn 107
$14.54List $18.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade2015
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5752506 is a TCMT 11 03 04-MF 2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4071
Insert materialCarbide
Insert shapeTriangle
Insert size code221
Insert styleTCMT
Insert thickness in1/8
Iso codeTCMT 11 03 04-MF 2015
Length range0.4000 - 0.5000
Manufacturer grade2015
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
