TCMT 06 T1 02-KF H13A Carbide Insert, Grade H13A - Sandvik Coromant 5752508

Sandvik Coromant

TCMT 06 T1 02-KF H13A Carbide Insert, Grade H13A - Sandvik Coromant 5752508

MFR# 5752508ISO/ANSI# TCMT 06 T1 02-KF H13ASeries CoroTurn 107

$13.41List $16.90 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/32
ShapeTriangle
GradeH13A
MaterialCarbide

Description

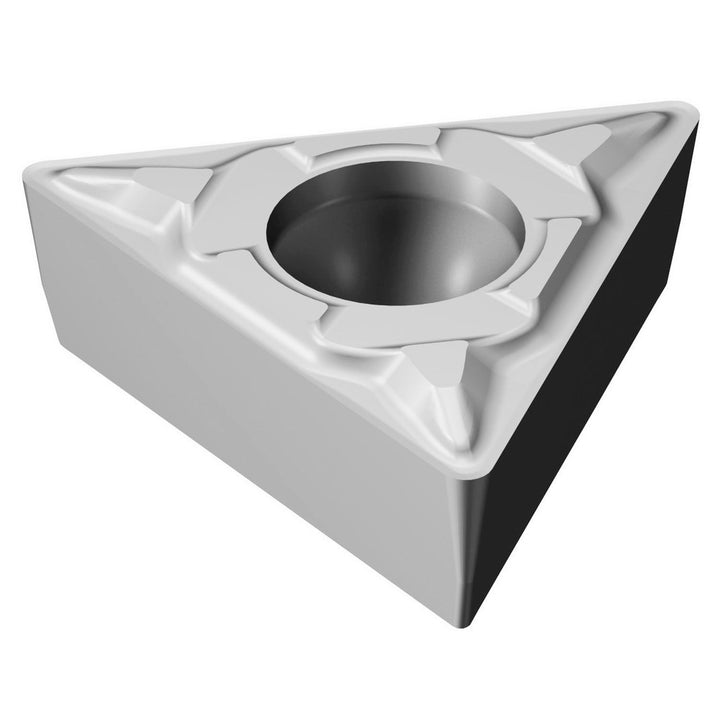

The Sandvik Coromant 5752508 is a TCMT 06 T1 02-KF H13A carbide indexable insert, grade H13A. Suited for cast iron.

Specifications

ChipbreakerKF
Corner radius0.0079
Hole diameter0.0866
Included angle60
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code1.21.20
Insert styleTCMT
Iso codeTCMT 06 T1 02-KF H13A
Length0.2528
Manufacturer gradeH13A
Number of cutting edges3
Primary workpiece materialCast Iron
Relief angle7
Secondary workpiece materialNon-Ferrous Metal
