Sandvik Coromant

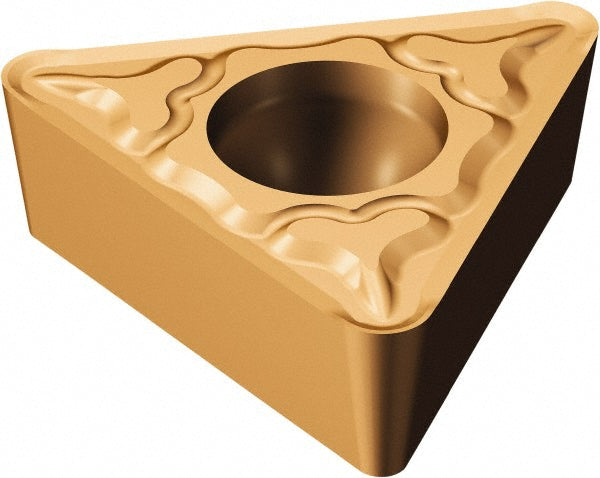

TCMT 11 03 08-MM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5752717
MFR# 5752717ISO/ANSI# TCMT 11 03 08-MM 1115Series CoroTurn 107
$15.21List $19.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5752717 is a TCMT 11 03 08-MM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4228
Insert materialCarbide
Insert shapeTriangle
Insert size code222
Insert styleTCMT
Insert thickness in1/8
Iso codeTCMT 11 03 08-MM 1115
Length range0.4000 - 0.5000
Manufacturers catalog number5752717
Manufacturer grade1115
Maximum depth of cut0.3913
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
