Sandvik Coromant

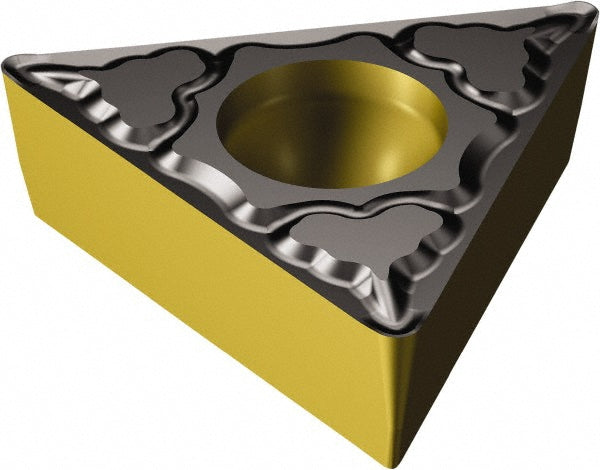

TCMT 16 T3 08-MM 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5752784
MFR# 5752784ISO/ANSI# TCMT 16 T3 08-MM 1105Series CoroTurn 107
$18.95List $24.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5752784 is a TCMT 16 T3 08-MM 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6180
Insert materialCarbide
Insert shapeTriangle
Insert size code32.52
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 08-MM 1105
Length range0.6000 - 0.6500
Manufacturer grade1105
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
