Sandvik Coromant

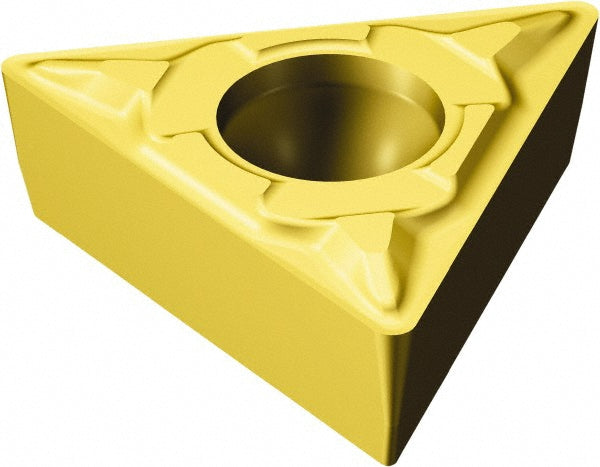

TCMT 16 T3 04-MF 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5752802
MFR# 5752802ISO/ANSI# TCMT 16 T3 04-MF 2025Series CoroTurn 107
$23.87List $30.08
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5752802 is a TCMT 16 T3 04-MF 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6338
Insert materialCarbide
Insert shapeTriangle
Insert size code32.51
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT 16 T3 04-MF 2025
Length range0.6000 - 0.6500
Manufacturer grade2025
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
