Sandvik Coromant

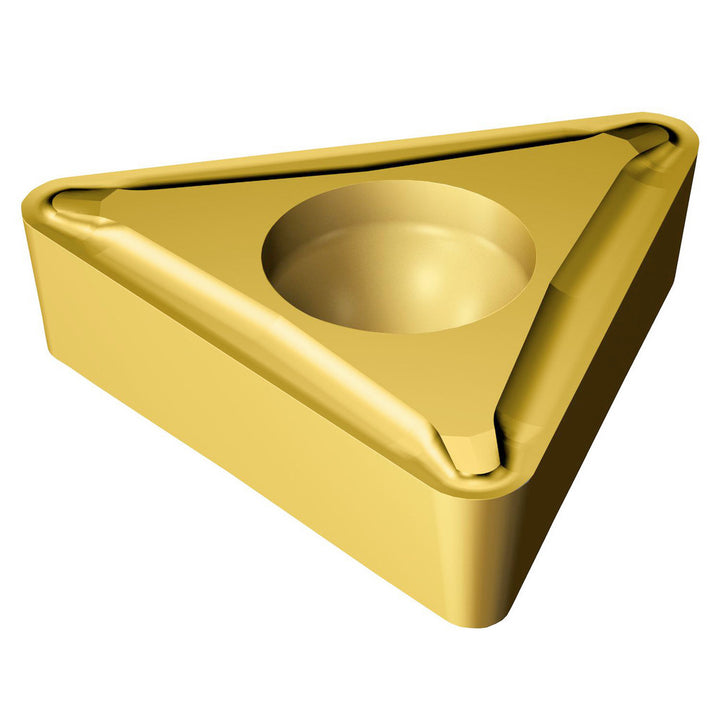

TCMT 06 T1 04-UF 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5752832
MFR# 5752832ISO/ANSI# TCMT 06 T1 04-UF 235Series CoroTurn 107
$12.46List $15.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTriangle
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5752832 is a TCMT 06 T1 04-UF 235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
ChipbreakerUF
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.0866
Included angle60
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code1.21.21
Insert styleTCMT
Iso codeTCMT 06 T1 04-UF 235
Length0.2449
Manufacturer grade235
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
