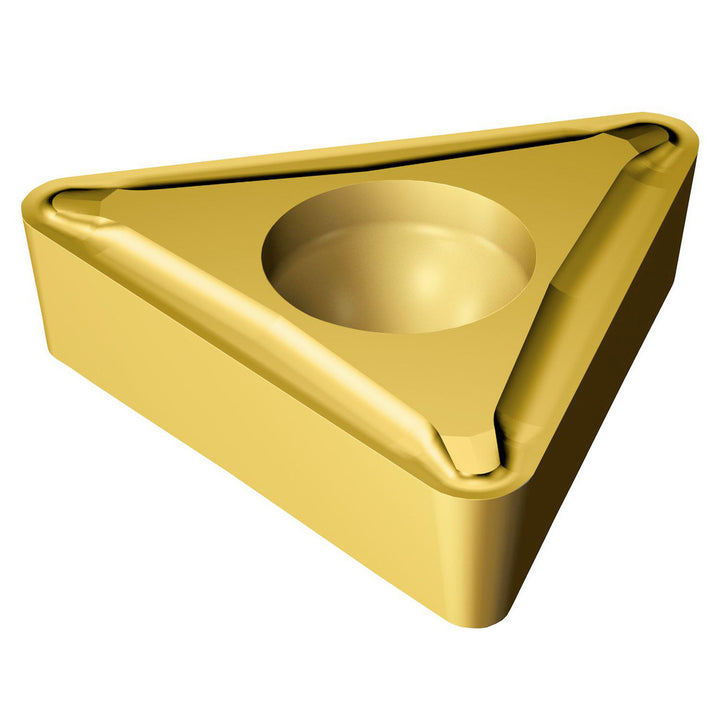

TCMT 06 T1 02-UF 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5752834

Sandvik Coromant

TCMT 06 T1 02-UF 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5752834

MFR# 5752834ISO/ANSI# TCMT 06 T1 02-UF 235Series CoroTurn 107

$16.76List $21.11 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/32
ShapeTriangle
Grade235
MaterialCarbide
CoatingTiCN

Description

The Sandvik Coromant 5752834 is a TCMT 06 T1 02-UF 235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.

Specifications

ChipbreakerUF
Coating finishTiCN
Coating processCVD
Corner radius0.0079
Hole diameter0.0866
Included angle60
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTriangle
Insert size code1.21.20
Insert styleTCMT
Iso codeTCMT 06 T1 02-UF 235
Length0.2528
Manufacturer grade235
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
