Sandvik Coromant

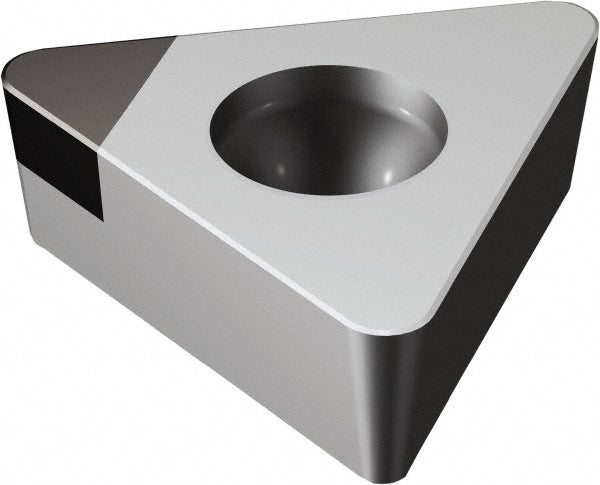

TCMW110208S01020E CB20 Carbide Insert, Grade CB20 - Sandvik Coromant 5752855
MFR# 5752855ISO/ANSI# TCMW110208S01020E CB20Series CoroTurn 107
$78.65List $100.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeCB20
MaterialCarbide
Description
The Sandvik Coromant 5752855 is a TCMW110208S01020E CB20 carbide indexable insert, grade CB20. Suited for hard material.
Specifications
Chip breakerW
Clearance codeC
Coating processUncoated
Corner radius in1/32
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.1181
Insert materialCarbide
Insert shapeTriangle
Insert size code21.52
Insert styleTCMW
Insert thickness in3/32
Iso codeTCMW110208S01020E CB20
Length range0.0000 - 0.3000
Manufacturer gradeCB20
Number of cutting edges1
Primary workpiece materialHard Material
Relief angle7
Tolerance codeM
Wiper edgeNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
