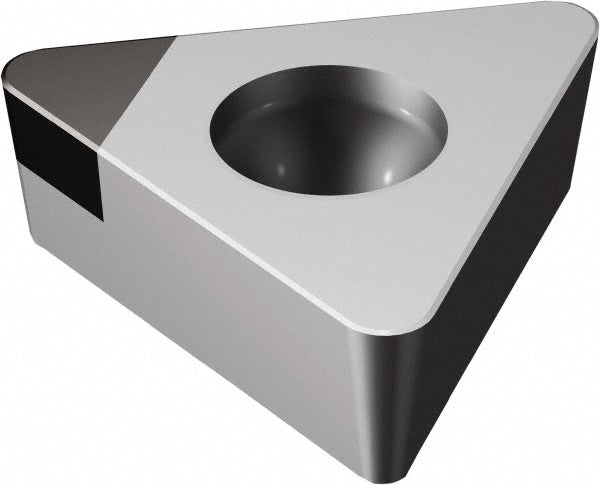

TCMW110204FP CD10 Carbide Insert, Grade CD10 - Sandvik Coromant 5752869
MFR# 5752869ISO/ANSI# TCMW110204FP CD10Series CoroTurn 107
$142.31List $182.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeCD10
MaterialCarbide
Description
The Sandvik Coromant 5752869 is a TCMW110204FP CD10 carbide indexable insert, grade CD10. Suited for non-ferrous metal.
Specifications
Chip breakerFP
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.1063
Insert materialCarbide
Insert shapeTriangle
Insert size code21.51
Insert styleTCMW
Insert thickness in3/32
Iso codeTCMW110204FP CD10
Length range0.0000 - 0.3000
Manufacturer gradeCD10
Number of cutting edges1
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Tolerance codeM
Wiper edgeNo
