Sandvik Coromant

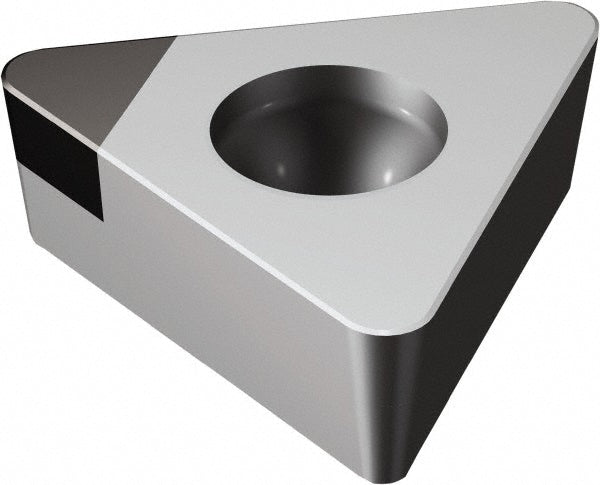

TCMW110204S01020E CB20 Carbide Insert, Grade CB20 - Sandvik Coromant 5752873
MFR# 5752873ISO/ANSI# TCMW110204S01020E CB20Series CoroTurn 107
$89.99List $113.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeCB20
MaterialCarbide
Description
The Sandvik Coromant 5752873 is a TCMW110204S01020E CB20 carbide indexable insert, grade CB20. Suited for hard material.
Specifications
Chip breakerW
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.1181
Insert materialCarbide
Insert shapeTriangle
Insert size code21.51
Insert styleTCMW
Insert thickness in3/32
Iso codeTCMW110204S01020E CB20
Length range0.0000 - 0.3000
Manufacturer gradeCB20
Number of cutting edges1
Primary workpiece materialHard Material
Relief angle7
Tolerance codeM
Wiper edgeNo
