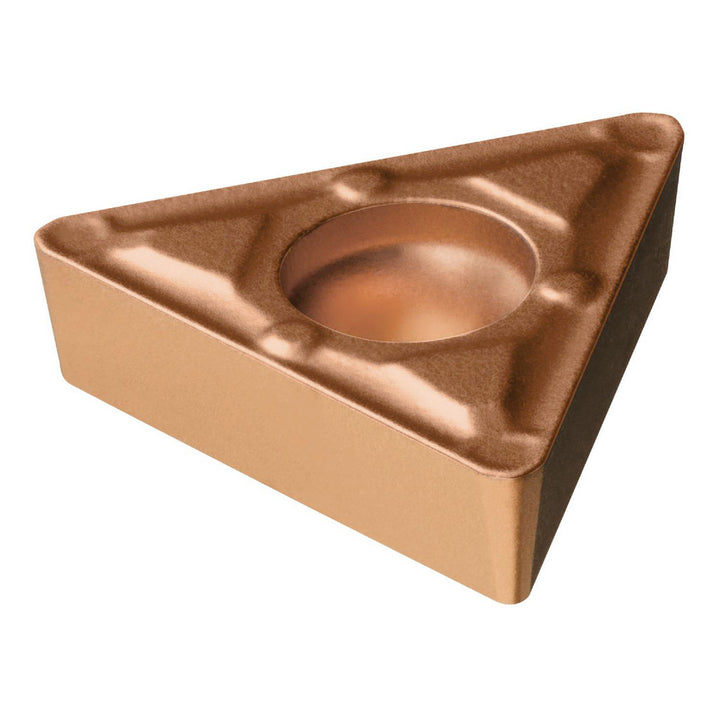

TCMX110304WF1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5752950

Sandvik Coromant

TCMX110304WF1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5752950

MFR# 5752950ISO/ANSI# TCMX110304WF1125Series CoroTurn 107

$22.97List $28.94 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeTriangle
Grade1125
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5752950 is a TCMX110304WF1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.

Specifications

Chip breakerWF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4228
Insert materialCarbide
Insert shapeTriangle
Insert size code221
Insert styleTCMX
Insert thickness in1/8
Iso codeTCMX110304WF1125
Length range0.4000 - 0.5000
Manufacturers catalog number5752950
Manufacturer grade1125
Maximum depth of cut0.4071
Number of cutting edges3
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeYes
