Sandvik Coromant

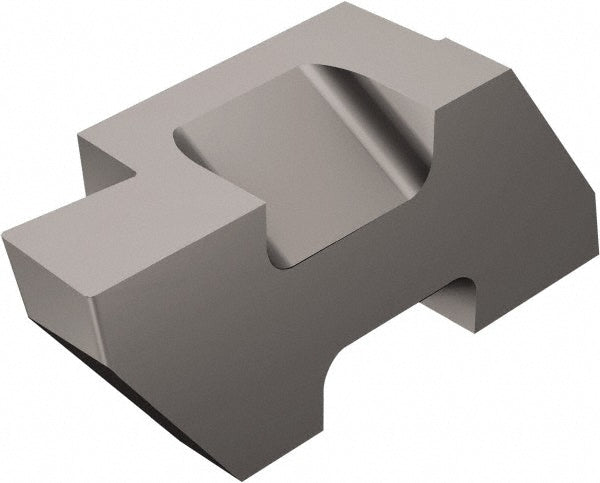

TLG-2062R H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5752969
MFR# 5752969ISO/ANSI# TLG-2062R H13ACat# TLG-2062R H13ASeries Top Lok
$25.89List $33.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeH13A
MaterialSolid Carbide
Description
The Sandvik Coromant 5752969 is a TLG-2062R H13A solid carbide indexable insert, grade H13A.
Specifications
Corner radius0.0075
Cutting height0.2190
Cutting width in1/16
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size2
Insert size2
Insert styleTLG
Insert thickness0.2190
Iso codeTLG-2062R H13A
Manufacturers catalog numberTLG-2062R H13A
Manufacturer gradeH13A
Maximum corner radius0.0075
Maximum depth of cut0.1100
Maximum depth of cut range0.1000 to 0.1500
Minimum corner radius0.0075
Multi use toolYes
Overall length0.3441
Overall width0.0620
RakeNeutral
Rake angle10.00
