Sandvik Coromant

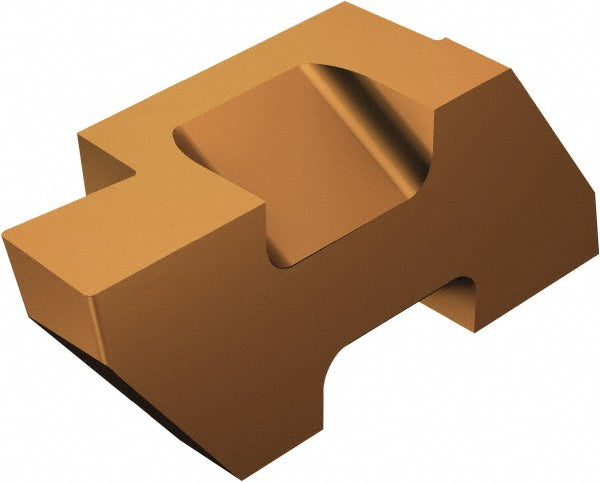

TLG-2062R 1125 Solid Carbide Insert, Grade 1125, TiCrAlN - Sandvik Coromant 5752973
MFR# 5752973ISO/ANSI# TLG-2062R 1125Cat# TLG-2062R 1125Series Top Lok
$35.55List $45.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiCrAlN
Description
The Sandvik Coromant 5752973 is a TLG-2062R 1125 solid carbide indexable insert, grade 1125, TiCrAlN coated.
Specifications
Coating finishTiCrAlN
Coating processPVD
Corner radius0.0075
Cutting height0.2190
Cutting width in1/16
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size2
Insert size2
Insert styleTLG
Insert thickness0.2190
Iso codeTLG-2062R 1125
Manufacturers catalog numberTLG-2062R 1125
Manufacturer grade1125
Maximum corner radius0.0075
Maximum depth of cut0.1100
Maximum depth of cut range0.1000 to 0.1500
Minimum corner radius0.0075
Multi use toolYes
Overall length0.3441
Overall width0.0620
RakeNeutral
Rake angle10.00
