Sandvik Coromant

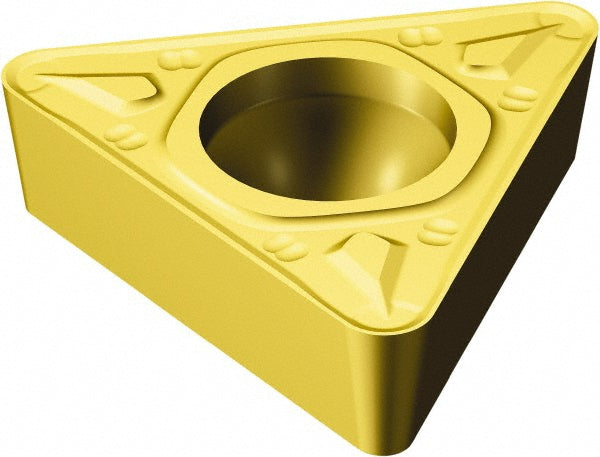

TCMT 22 04 08-MR 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5752991
MFR# 5752991ISO/ANSI# TCMT 22 04 08-MR 2035Series CoroTurn 107
$24.76List $31.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
Grade2035
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5752991 is a TCMT 22 04 08-MR 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMR
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2165
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.8345
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTCMT
Insert thickness in3/16
Iso codeTCMT 22 04 08-MR 2035
Length range0.7000 - 10.0000
Manufacturer grade2035
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
