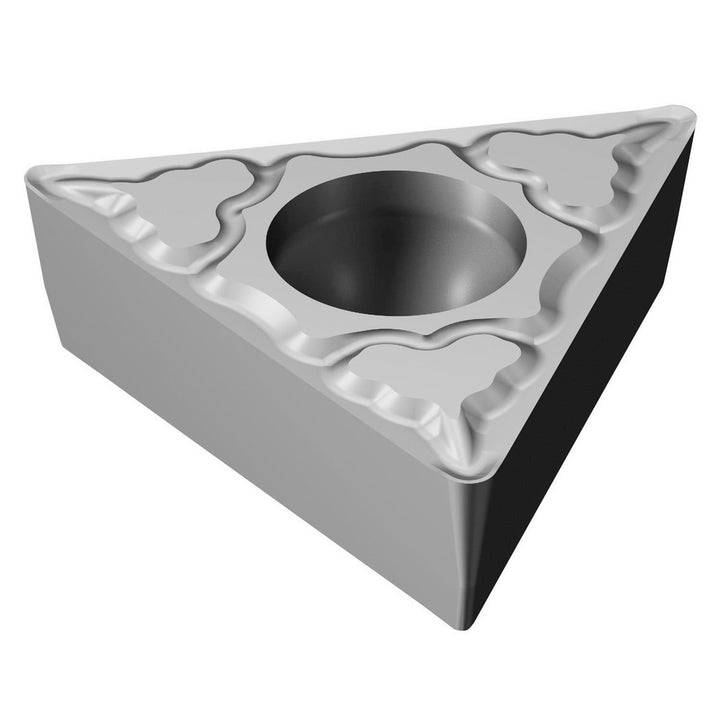

TCMT 22 04 08-KM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5753021

Sandvik Coromant

TCMT 22 04 08-KM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5753021

MFR# 5753021ISO/ANSI# TCMT 22 04 08-KM H13ASeries CoroTurn 107

$25.50List $32.13 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeH13A
MaterialCarbide

Description

The Sandvik Coromant 5753021 is a TCMT 22 04 08-KM H13A carbide indexable insert, grade H13A. Suited for cast iron.

Specifications

Chip breakerKM
Clearance codeC
Corner radius in1/32
Hole diameter0.2165
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.8345
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTCMT
Insert thickness in3/16
Iso codeTCMT 22 04 08-KM H13A
Length range0.7000 - 10.0000
Manufacturer gradeH13A
Number of cutting edges3
Primary workpiece materialCast Iron
Relief angle7
Secondary workpiece materialNon-Ferrous Metal
Tolerance codeM
Wiper edgeNo
