Sandvik Coromant

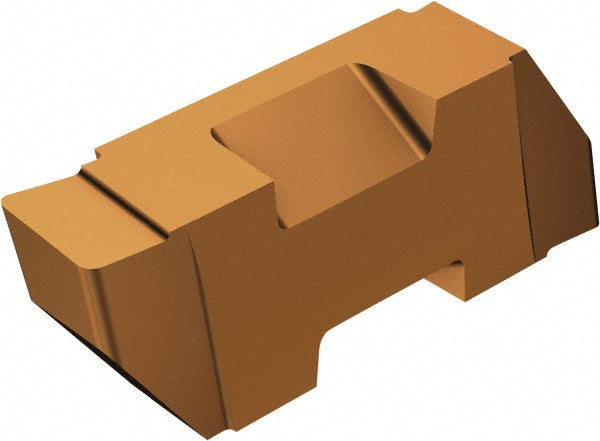

TLGP-4189R 1125 Solid Carbide Insert, Grade 1125, TiCrAlN - Sandvik Coromant 5753128
MFR# 5753128ISO/ANSI# TLGP-4189R 1125Cat# TLGP-4189R 1125Series Top Lok
$53.56List $68.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiCrAlN
Description
The Sandvik Coromant 5753128 is a TLGP-4189R 1125 solid carbide indexable insert, grade 1125, TiCrAlN coated.
Specifications
Coating finishTiCrAlN
Coating processPVD
Corner radius0.0225
Cutting height0.4530
Cutting width0.1890
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size4
Insert size4
Insert styleTLGP
Insert thickness0.4530
Iso codeTLGP-4189R 1125
Manufacturers catalog numberTLGP-4189R 1125
Manufacturer grade1125
Maximum corner radius0.0225
Maximum depth of cut in1/4
Maximum depth of cut range0.2000 to 0.3000
Minimum corner radius0.0225
Multi use toolYes
Overall length0.7598
Overall width0.1890
RakeNeutral
Rake angle10.00
