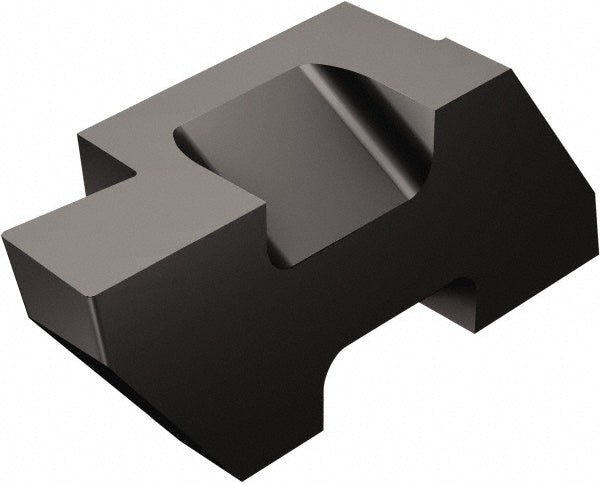

TLG-3189L 3020 Solid Carbide Insert, Grade 3020, TiCN - Sandvik Coromant 5753141
MFR# 5753141ISO/ANSI# TLG-3189L 3020Cat# TLG-3189L 3020Series Top Lok
$38.91List $49.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade3020
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 5753141 is a TLG-3189L 3020 solid carbide indexable insert, grade 3020, TiCN coated.
Specifications
Coating finishTiCN
Coating processMT-CVD
Corner radius0.0225
Cutting height0.3440
Cutting width0.1890
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3
Insert styleTLG
Insert thickness0.3440
Iso codeTLG-3189L 3020
Manufacturers catalog numberTLG-3189L 3020
Manufacturer grade3020
Maximum corner radius0.0225
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0225
Multi use toolYes
Overall length0.6339
Overall width0.1890
RakeNeutral
Rake angle10.00
