TLGP-2094L 1125 Solid Carbide Insert, Grade 1125, TiCrAlN - Sandvik Coromant 5753157

Sandvik Coromant

TLGP-2094L 1125 Solid Carbide Insert, Grade 1125, TiCrAlN - Sandvik Coromant 5753157

MFR# 5753157ISO/ANSI# TLGP-2094L 1125Cat# TLGP-2094L 1125Series Top Lok

$43.63List $45.60 Save 4%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiCrAlN

Description

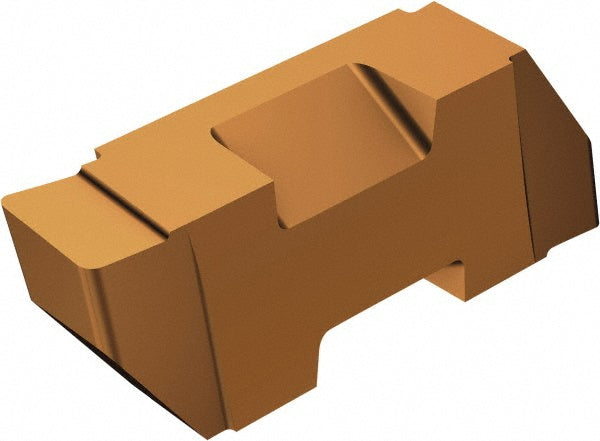

The Sandvik Coromant 5753157 is a TLGP-2094L 1125 solid carbide indexable insert, grade 1125, TiCrAlN coated.

Specifications

Coating finishTiCrAlN
Coating processPVD
Corner radius0.0075
Cutting height0.2190
Cutting width in3/32
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat size2
Insert size2
Insert styleTLGP
Insert thickness0.2190
Iso codeTLGP-2094L 1125
Manufacturers catalog numberTLGP-2094L 1125
Manufacturer grade1125
Maximum corner radius0.0075
Maximum depth of cut0.1100
Maximum depth of cut range0.1000 to 0.1500
Minimum corner radius0.0075
Multi use toolYes
Overall length0.3441
Overall width0.0940
RakeNeutral
Rake angle10.00
