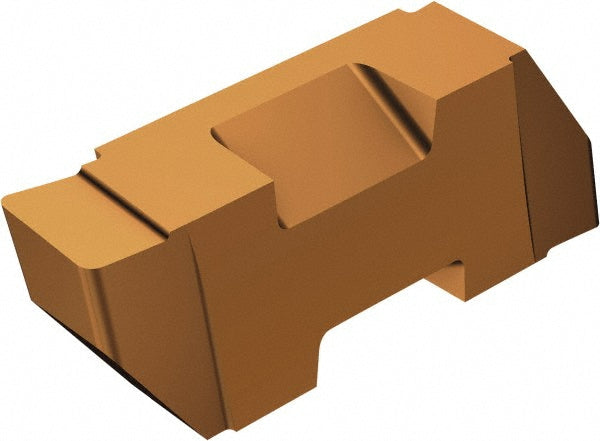

TLGP-3072R 1125 Solid Carbide Insert, Grade 1125, TiCrAlN - Sandvik Coromant 5753234

Sandvik Coromant

TLGP-3072R 1125 Solid Carbide Insert, Grade 1125, TiCrAlN - Sandvik Coromant 5753234

MFR# 5753234ISO/ANSI# TLGP-3072R 1125Cat# TLGP-3072R 1125Series Top Lok

$54.36List $68.50 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiCrAlN

Description

The Sandvik Coromant 5753234 is a TLGP-3072R 1125 solid carbide indexable insert, grade 1125, TiCrAlN coated.

Specifications

Coating finishTiCrAlN
Coating processPVD
Corner radius0.0075
Cutting height0.3440
Cutting width0.0720
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3
Insert styleTLGP
Insert thickness0.3440
Iso codeTLGP-3072R 1125
Manufacturers catalog numberTLGP-3072R 1125
Manufacturer grade1125
Maximum corner radius0.0075
Maximum depth of cut in3/32
Maximum depth of cut range0.0750 to 0.1000
Minimum corner radius0.0075
Multi use toolYes
Overall length0.6339
Overall width0.0720
RakeNeutral
Rake angle10.00
