Sandvik Coromant

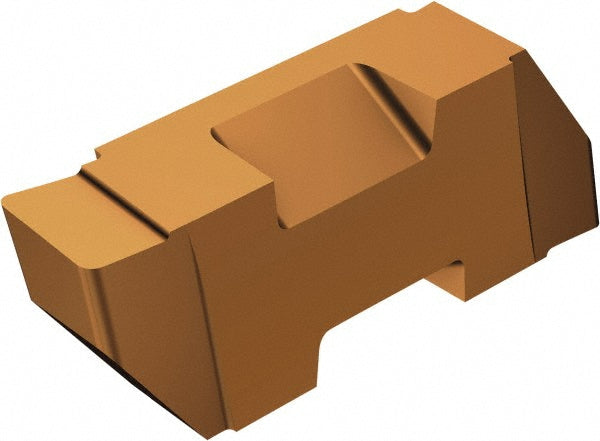

TLGP-3062L 1125 Solid Carbide Insert, Grade 1125, TiCrAlN - Sandvik Coromant 5753274
MFR# 5753274ISO/ANSI# TLGP-3062L 1125Cat# TLGP-3062L 1125Series Top Lok
$42.80List $54.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiCrAlN
Description
The Sandvik Coromant 5753274 is a TLGP-3062L 1125 solid carbide indexable insert, grade 1125, TiCrAlN coated.
Specifications
Coating finishTiCrAlN
Coating processPVD
Corner radius0.0075
Cutting height0.3440
Cutting width in1/16
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3
Insert styleTLGP
Insert thickness0.3440
Iso codeTLGP-3062L 1125
Manufacturers catalog numberTLGP-3062L 1125
Manufacturer grade1125
Maximum corner radius0.0075
Maximum depth of cut in3/32
Maximum depth of cut range0.0750 to 0.1000
Minimum corner radius0.0075
Multi use toolYes
Overall length0.6339
Overall width0.0620
RakeNeutral
Rake angle10.00
