Sandvik Coromant

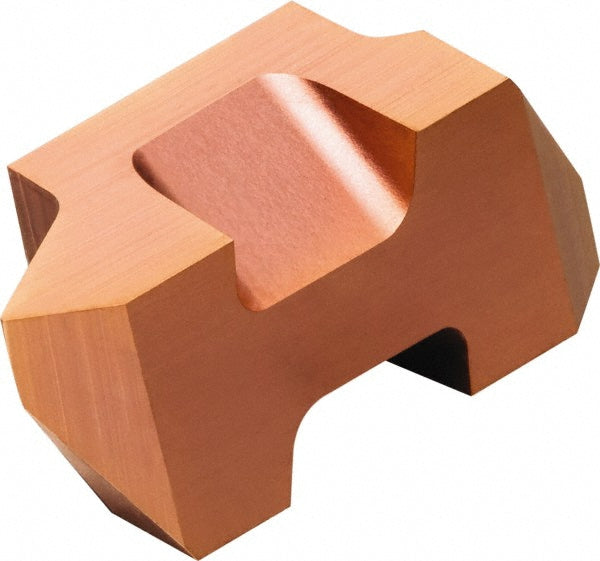

TLTP-2L 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5753316
MFR# 5753316ISO/ANSI# TLTP-2L 1125Series Top Lok
$45.15List $56.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5753316 is a TLTP-2L 1125 carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0040
External pitch0.70-3.50 mm; 7-36 TPI
Finish coatingTiAlN
Included angle60degree
Insert handLeft Hand
Insert materialCarbide
Insert size2
Insert styleTLTP
Internal pitch0.70 to 3.50 mm; 7 to 36 TPI
Iso codeTLTP-2L 1125
Manufacturer grade1125
Thickness0.2190in
Thread standard60 Deg V
Thread typeInternal; External
Tip to top of insert0.2190
Width of cutting tip0.1500
