Sandvik Coromant

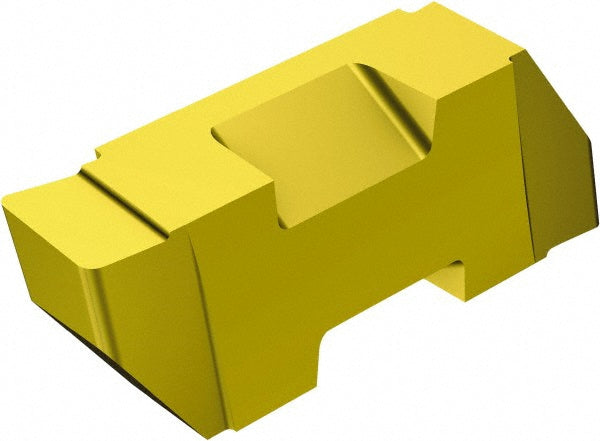

TLGP-2031R 2135 Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5753383
MFR# 5753383ISO/ANSI# TLGP-2031R 2135Cat# TLGP-2031R 2135Series Top Lok
$41.02List $51.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5753383 is a TLGP-2031R 2135 solid carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0035
Cutting height0.2190
Cutting width0.0310
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size2
Insert size2
Insert styleTLGP
Insert thickness0.2190
Iso codeTLGP-2031R 2135
Manufacturers catalog numberTLGP-2031R 2135
Manufacturer grade2135
Maximum corner radius0.0035
Maximum depth of cut0.0500
Maximum depth of cut range0.0000 to 0.0750
Minimum corner radius0.0035
Multi use toolYes
Overall length0.3441
Overall width0.0310
RakeNeutral
Rake angle10.00
