Sandvik Coromant

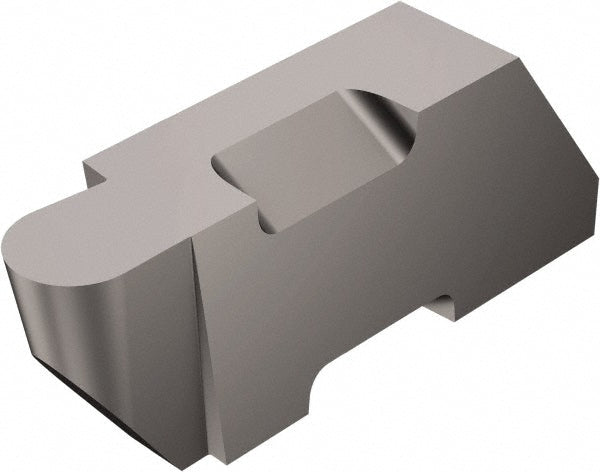

TLR-3062L H13A Solid Carbide Insert - Sandvik Coromant 5753421
MFR# 5753421ISO/ANSI# TLR-3062L H13ACat# TLR-3062L H13ASeries Top Lok
$31.11List $39.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
Description
The Sandvik Coromant 5753421 is a TLR-3062L H13A solid carbide indexable insert.
Specifications
Chip breakerTLR
Corner radius0.0620
Cutting height0.3440
Cutting width0.1240
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3L
Insert styleTLR
Insert thickness0.3440
Iso codeTLR-3062L H13A
Manufacturers catalog numberTLR-3062L H13A
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0620
Multi use toolYes
Overall width0.1240
RakePositive
