Sandvik Coromant

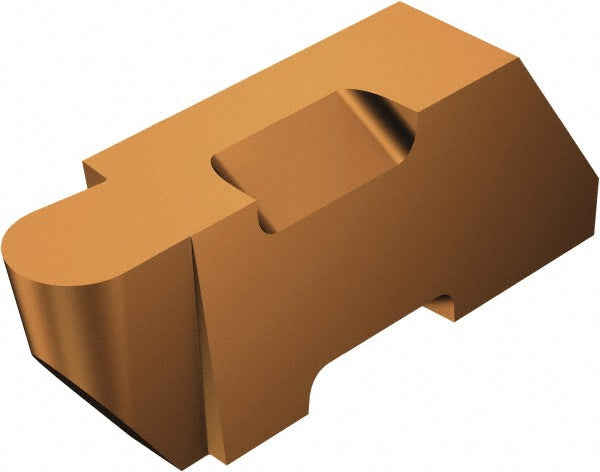

TLR-3062L 1125 Solid Carbide Insert, TiAlN - Sandvik Coromant 5753423
MFR# 5753423ISO/ANSI# TLR-3062L 1125Cat# TLR-3062L 1125Series Top Lok
$52.53List $54.90
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5753423 is a TLR-3062L 1125 solid carbide indexable insert, TiAlN coated.
Specifications
Chip breakerTLR
Coating finishTiAlN
Coating processPVD
Corner radius0.0620
Cutting height0.3440
Cutting width0.1240
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3L
Insert styleTLR
Insert thickness0.3440
Iso codeTLR-3062L 1125
Manufacturers catalog numberTLR-3062L 1125
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0620
Multi use toolYes
Overall width0.1240
RakePositive
