Sandvik Coromant

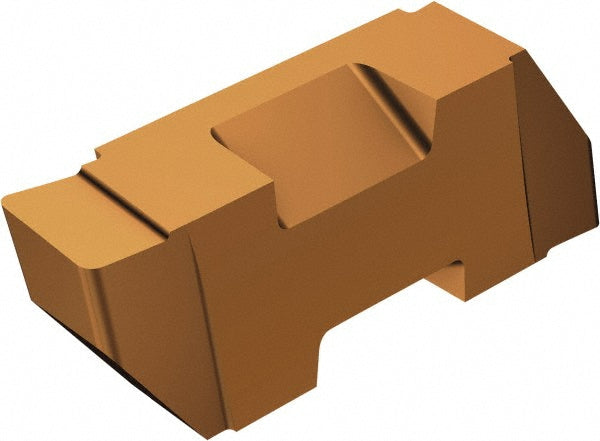

TLGP-4250R 1125 Solid Carbide Insert, Grade 1125, TiCrAlN - Sandvik Coromant 5753452
MFR# 5753452ISO/ANSI# TLGP-4250R 1125Cat# TLGP-4250R 1125Series Top Lok
$53.56List $68.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiCrAlN
Description
The Sandvik Coromant 5753452 is a TLGP-4250R 1125 solid carbide indexable insert, grade 1125, TiCrAlN coated.
Specifications
Coating finishTiCrAlN
Coating processPVD
Corner radius0.0225
Cutting height0.4530
Cutting width in1/4
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size4
Insert size4
Insert styleTLGP
Insert thickness0.4530
Iso codeTLGP-4250R 1125
Manufacturers catalog numberTLGP-4250R 1125
Manufacturer grade1125
Maximum corner radius0.0225
Maximum depth of cut in1/4
Maximum depth of cut range0.2000 to 0.3000
Minimum corner radius0.0225
Multi use toolYes
Overall length0.7598
Overall width in1/4
RakeNeutral
Rake angle10.00
