TLRP-3047L 1125 Solid Carbide Insert, TiAlN - Sandvik Coromant 5753549

Sandvik Coromant

TLRP-3047L 1125 Solid Carbide Insert, TiAlN - Sandvik Coromant 5753549

MFR# 5753549ISO/ANSI# TLRP-3047L 1125Cat# TLRP-3047L 1125Series Top Lok

$54.36List $68.50 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN

Description

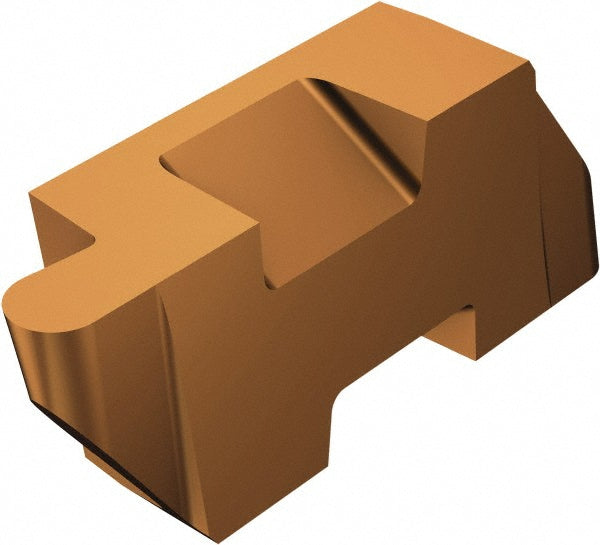

The Sandvik Coromant 5753549 is a TLRP-3047L 1125 solid carbide indexable insert, TiAlN coated.

Specifications

Chip breakerTLRP
Coating finishTiAlN
Coating processPVD
Corner radius0.0470
Cutting height0.3440
Cutting width0.0940
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3L
Insert styleTLRP
Insert thickness0.3440
Iso codeTLRP-3047L 1125
Manufacturers catalog numberTLRP-3047L 1125
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0470
Multi use toolYes
RakePositive
