Sandvik Coromant

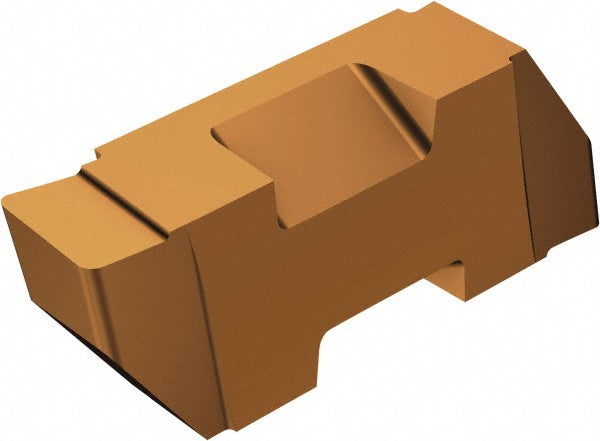

TLGP-3088L 1125 Solid Carbide Insert, Grade 1125, TiCrAlN - Sandvik Coromant 5753565
MFR# 5753565ISO/ANSI# TLGP-3088L 1125Cat# TLGP-3088L 1125Series Top Lok
$54.36List $68.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiCrAlN
Description
The Sandvik Coromant 5753565 is a TLGP-3088L 1125 solid carbide indexable insert, grade 1125, TiCrAlN coated.
Specifications
Coating finishTiCrAlN
Coating processPVD
Corner radius0.0075
Cutting height0.3440
Cutting width0.0880
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3
Insert styleTLGP
Insert thickness0.3440
Iso codeTLGP-3088L 1125
Manufacturers catalog numberTLGP-3088L 1125
Manufacturer grade1125
Maximum corner radius0.0075
Maximum depth of cut in3/32
Maximum depth of cut range0.0750 to 0.1000
Minimum corner radius0.0075
Multi use toolYes
Overall length0.6339
Overall width0.0880
RakeNeutral
Rake angle10.00
