Sandvik Coromant

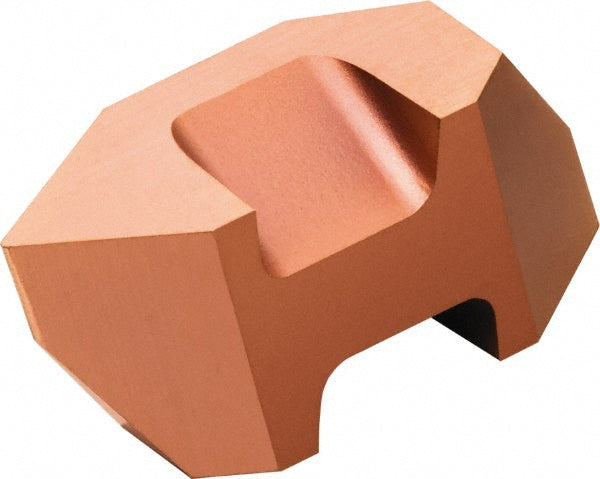

TLT-2R 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5753591
MFR# 5753591ISO/ANSI# TLT-2R 1125Series Top Lok
$35.55List $45.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5753591 is a TLT-2R 1125 carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0040
External pitch0.70-3.50 mm; 7-36 TPI
Finish coatingTiAlN
Included angle60degree
Insert handRight Hand
Insert materialCarbide
Insert size2
Insert styleTLT..R
Internal pitch0.70 to 3.50 mm; 7 to 36 TPI
Iso codeTLT-2R 1125
Manufacturer grade1125
Thickness0.2190in
Thread standard60 Deg V
Thread typeInternal; External
Tip to top of insert0.2190
Width of cutting tip0.1500
