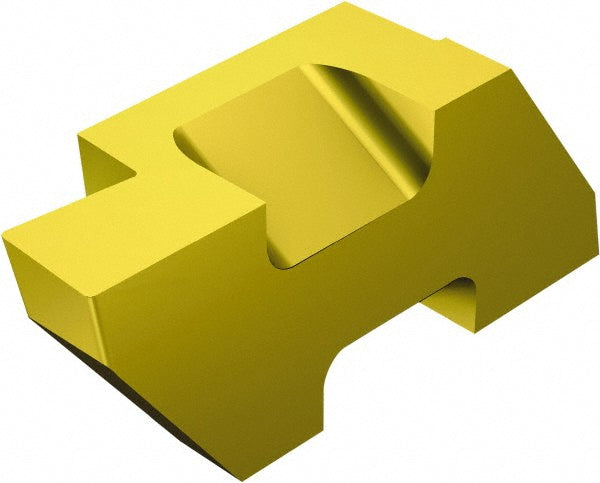

TLG-3062R 2135 Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5753610

Sandvik Coromant

TLG-3062R 2135 Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5753610

MFR# 5753610ISO/ANSI# TLG-3062R 2135Cat# TLG-3062R 2135Series Top Lok

$49.44List $62.30 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Grade2135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN

Description

The Sandvik Coromant 5753610 is a TLG-3062R 2135 solid carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.

Specifications

Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0075
Cutting height0.3440
Cutting width in1/16
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3
Insert styleTLG
Insert thickness0.3440
Iso codeTLG-3062R 2135
Manufacturers catalog numberTLG-3062R 2135
Manufacturer grade2135
Maximum corner radius0.0075
Maximum depth of cut in3/32
Maximum depth of cut range0.0750 to 0.1000
Minimum corner radius0.0075
Multi use toolYes
Overall length0.6339
Overall width0.0620
RakeNeutral
Rake angle10.00
