Sandvik Coromant
TNMG 16 04 04-MF 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5753811
MFR# 5753811ISO/ANSI# TNMG 16 04 04-MF 1115Series T-Max P
$19.29List $24.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade1115
MaterialCarbide
CoatingTiAlN
Description

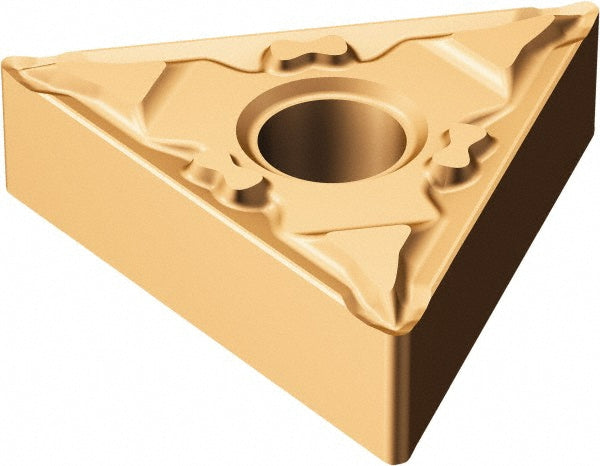

The Sandvik Coromant 5753811 is a TNMG 16 04 04-MF 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code331
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 04-MF 1115
Length range0.6000 - 0.6500
Manufacturers catalog number5753811
Manufacturer grade1115
Maximum depth of cut0.6339
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
