Sandvik Coromant

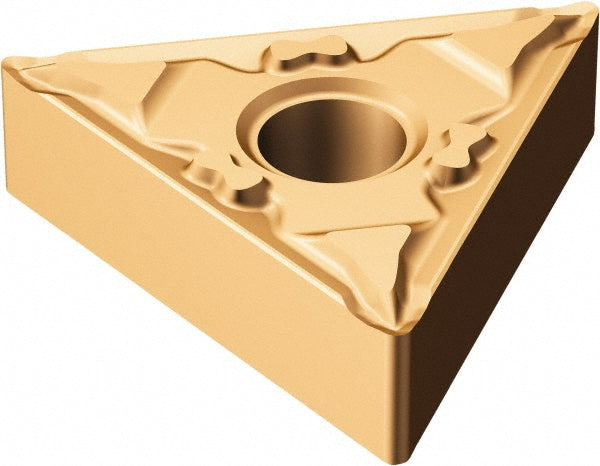

TNMG 16 04 08-MF 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5753915
MFR# 5753915ISO/ANSI# TNMG160408Series T-Max P
$20.83List $26.24
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5753915 is a TNMG 16 04 08-MF 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Ansi insert codeTNMG332
Ansi size code332
Chip breakerMF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 08-MF 1115
Iso insert codeTNMG160408
Iso size code160408
Length range0.6000 - 0.6500
Manufacturers catalog number5753915
Manufacturer grade1115
Maximum depth of cut0.6181
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
