Sandvik Coromant

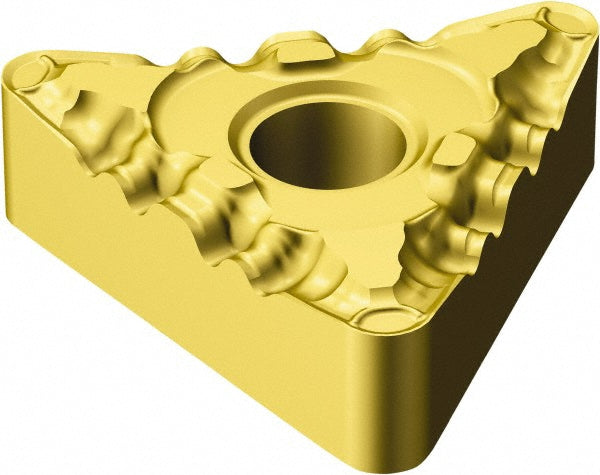

TNMG 16 04 04-PF 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5753987
MFR# 5753987ISO/ANSI# TNMG 16 04 04-PF 1525Series T-Max P
$15.62List $20.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5753987 is a TNMG 16 04 04-PF 1525 carbide indexable insert, grade 1525, TiCN coated. Suited for steel.
Specifications
Chip breakerPF
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6338
Insert materialCarbide
Insert shapeTriangle
Insert size code331
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 04-PF 1525
Length range0.6000 - 0.6500
Manufacturer grade1525
Number of cutting edges6
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Tolerance codeM
Wiper edgeNo
