TNMG 16 04 08-MR 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5754125

Sandvik Coromant

TNMG 16 04 08-MR 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5754125

MFR# 5754125ISO/ANSI# TNMG 16 04 08-MR 2025Series T-Max P

$20.01List $25.22 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
Grade2025
MaterialCarbide
CoatingTiCN

Description

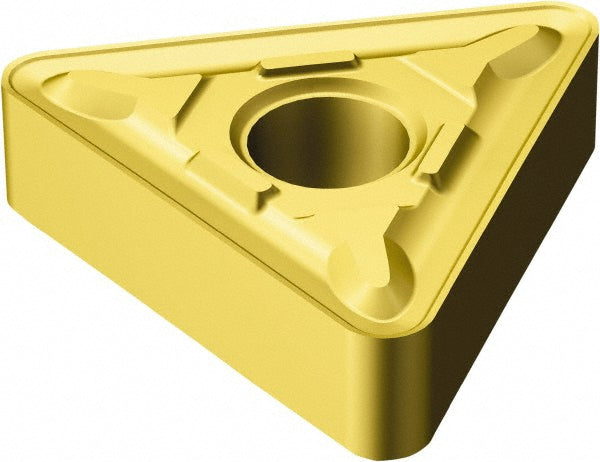

The Sandvik Coromant 5754125 is a TNMG 16 04 08-MR 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.

Specifications

Chip breakerMR
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1500
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6180
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 16 04 08-MR 2025
Length range0.6000 - 0.6500
Manufacturer grade2025
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
